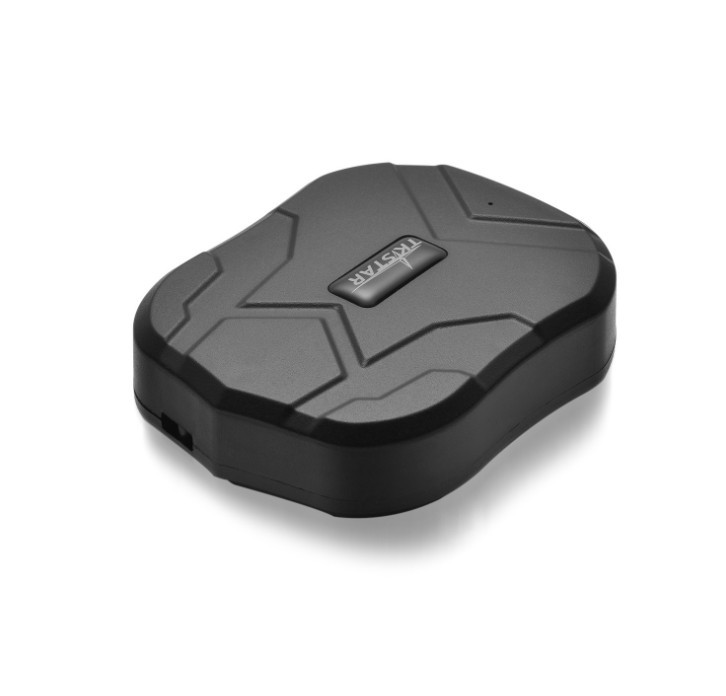

4G TK905

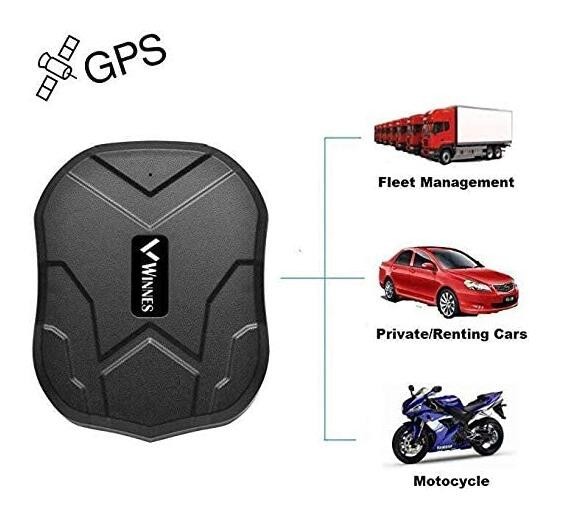

Applications

◆Track Private cars/Vehicle rental /Fleet management/ Equipment outside etc

◆Track container /cargo

Product Features

GPS+LBS+WIFI+BD+GLONASS LOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.

VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.

GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.

WATERPROOF IP65

Super waterproof makes the device can be used in rainy . Never worry about that it is broken when it is rainy.

HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.

MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.

OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.

BATTERY STANDBY LIFE

5000mAh rechargeable battery make sure device can be work up to 30 days.

Product specs

Content	Specs.
Dim.	90mm x 72mm x 22mm
Weight	168g
Band&Network	FDD-LTE:B1 B2 B3 B4 B5 B7 B8 B12(17) B20 B28 TDD-LTE: B38 B39 B40 B41 WCDMA:B1 B2 B5 B8 GSM:850/900/1800/1900
GPS chip	SC9820E
Electrostatic Protection	Touch +/-7KV Not Touch +/-14KV
Number of channels	66 Channels
GPS sensitivity	-165dBm
GPS accuracy	10m
Time To First Fix	Cold status 35-80 s Warm status 35s Hot status 1s
Car charger	12—24V input 5V output
Wall charge	110－220V input 5V output
Battery	Rechargeable 3.7V 5000mAh Li-ion battery
Standby	30 days
Storage Temp.	-40°C to +85°C
Operation Temp.	-20°C to +55°C
Humidity	5%--95% non-condensing
