TK910 4g

TK910 4g

Application


◆Track Motorcycle/Private cars/Vehicle rental / Equipment outside
◆Monitor company vehicles

◆Electric vehicles/ Motorcycle/Cars/Trucks/ Scooter



Product Features



GPS+LBS+WIFI+BD+GLONASS lOCATION

Supports GPS&LBS+WIFI&BD&GLONASS.the users are able to use it outside and indoor globally.




VIBRATION ALERT

Build-in sensitive vibration sensor even if a slight vibration for 3second the device will send alarm to owner.



GEO-FENCE

Geo-fence will help you make safe area for your car/families .if carrier is out of safe area the device will send alarm to owner.



HISTORICAL ROUTES

The server can store the data for half year so you can check the historical routes in APP&Web platform at any time.



MOVE ALERT

As long as the car is driven far from the sidtace which was set the device will send alarm to the owner via SMS&APP.



OVER SPEED ALERT

Build-in 3G-sensor ,Once the driver is beyong the safe speed that device will send alarm to the user.



CUT OFF/RESUME CAR ENGINE

Remoting control cutting off/resume oil supply to car.


Product Specs.

Content

Specs.

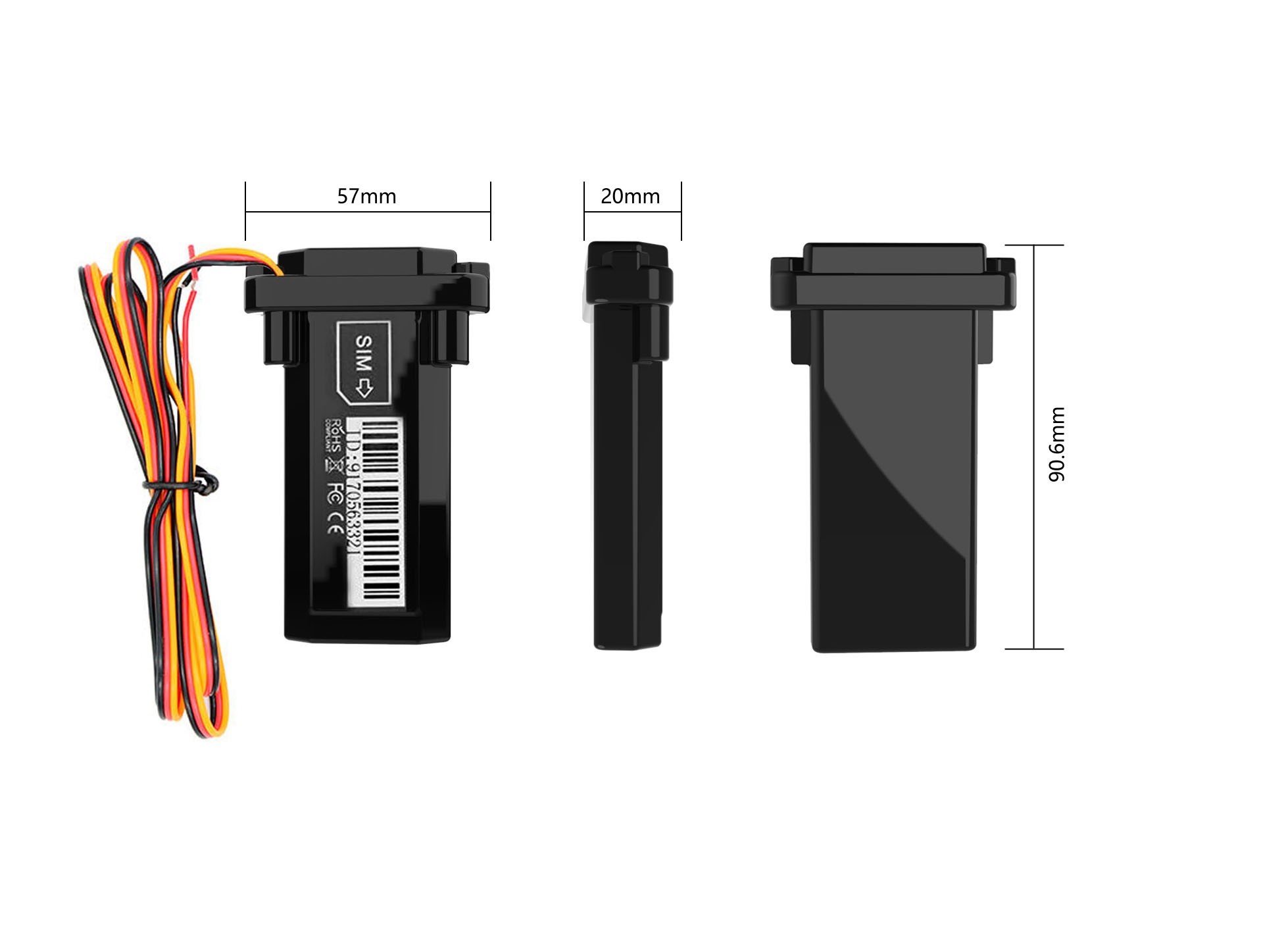

Dim.

90.6mm * 57mm * 20mm

Weight

68g

Network

4G LTE

Band

Europe/ Middle East/Africa/Korea/Thailand

FDD:B1/B3/B7/B8/B20/B28A

WCDMA:B1/B8

GSM:B3/B8


South America/New Zealand /Australia :

FDD:B1/B2/B3/B4/B5/B7/B8/B28 TDD:B40

WCDMA:B1/B2/B5/B8

GSM:B2/B3/B5/B8


NB+CAT M1+2G

B1/B2/B3/B4/B5/B8/B12/B13/B14/B18/B19/

B20/B25/B26/B27/B28/B66/B85

Cat NB2:

B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/

B25/B26/B28/B66/B71/B85

EGPRS:

850/900/1800/1900 MHz


GPS chip

MT6261D

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  35-80 s

Warm status  35s

Hot status  1s

Operating Voltage

DC 9V-95V



Battery

140mAH (3.7V polymer battery)

Standby

2 hours

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +55°C

Humidity

5%--95% non-condensing
